Concrete flow table
Used to determine the consistency of fresh concrete by measuring the spread of concrete on a flat plate which is subjected to jolting.
Concrete flow table
Description
The Concrete Flow Table is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table.

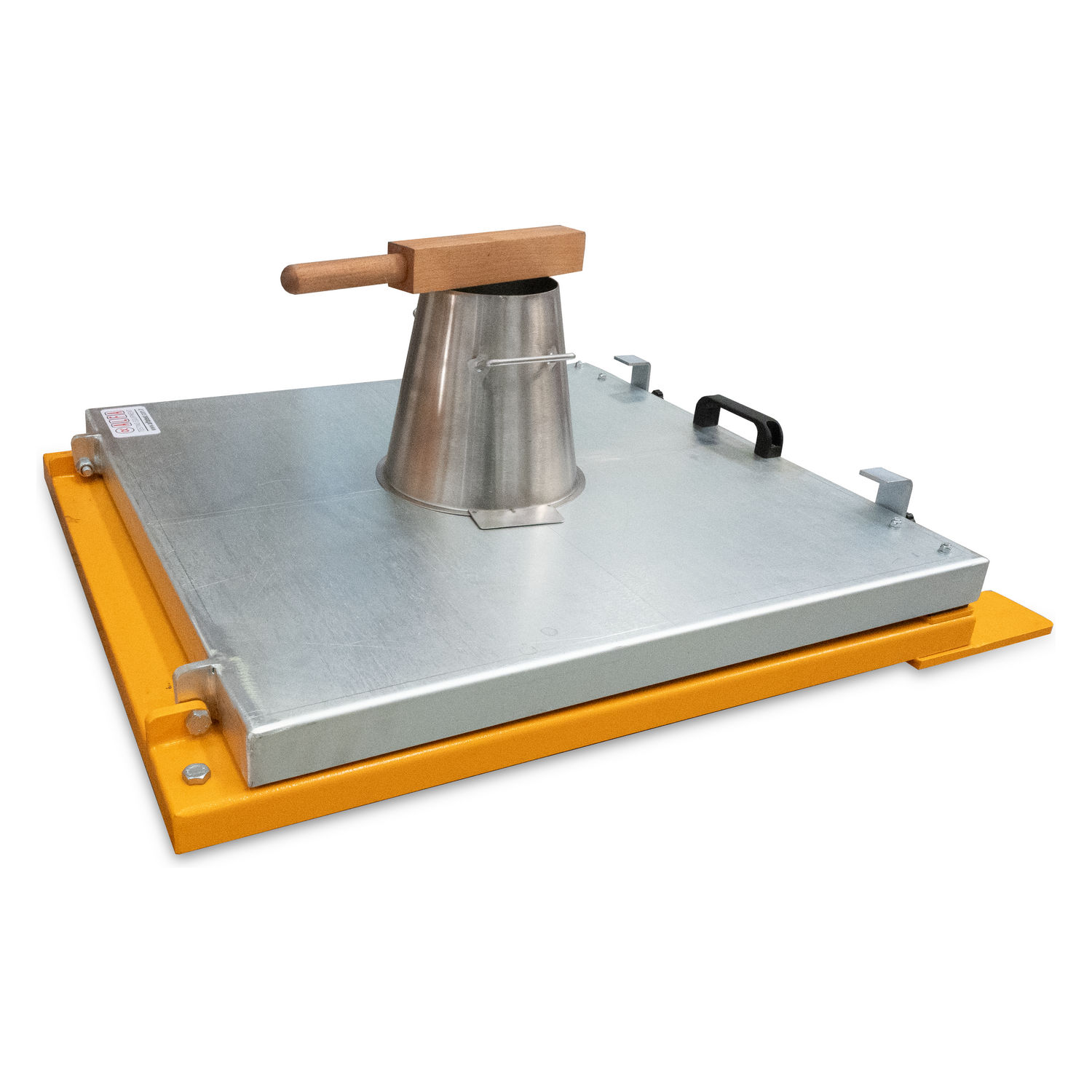

The flow table set consists of a double steel table, an upper table measuring 700×700 mm and hinged at one side to the lower table.
All parts are protected against corrosion. The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness.
Specifications
| Mitat | 700 × 700 × 200 mm (millimetri) |
|---|---|
| Workability and consistency | EN 12350-5, EN 12350-4, EN 12350-2, EN 12350-8, EN 12350-3, DIN 1048, ASTM C124, ASTM C143, ASTM C360, ASTM C1362, NF P18-452, NF P18-305, BS 1881:102, BS 1881:104, AASHTO T119 |
